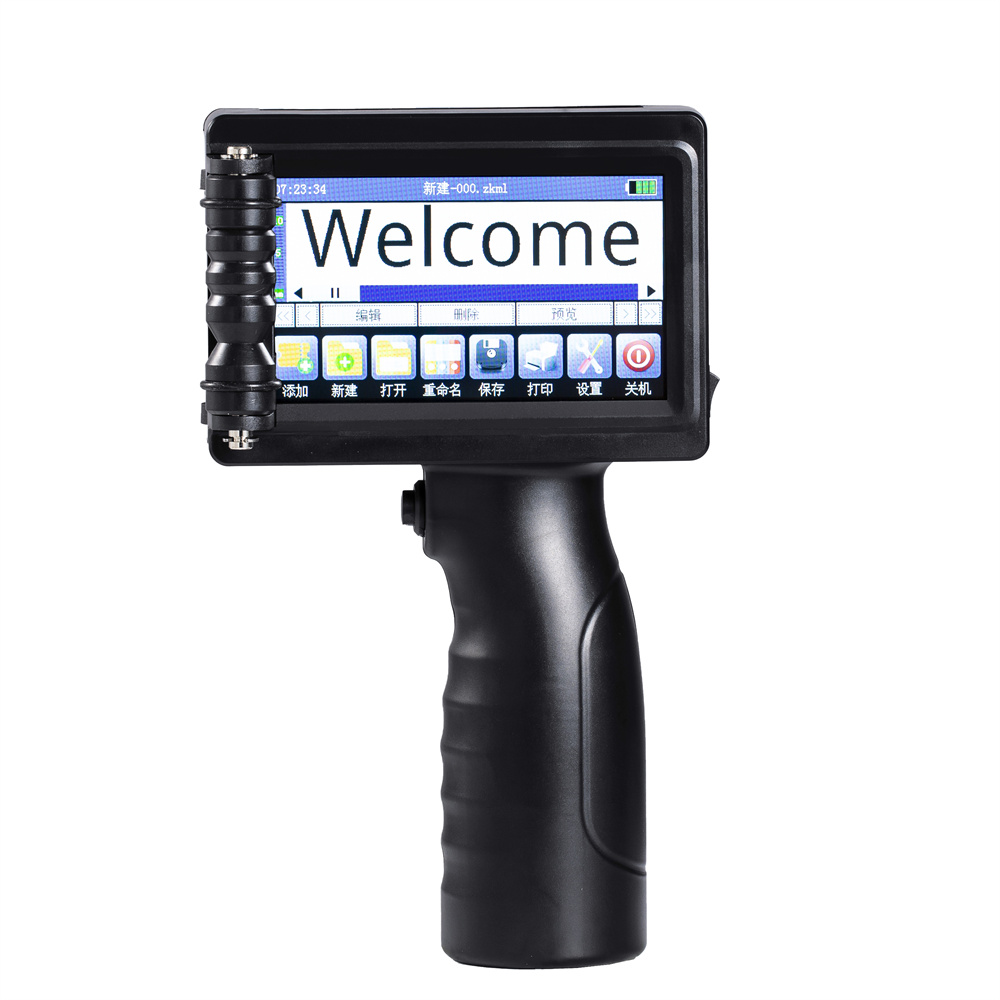

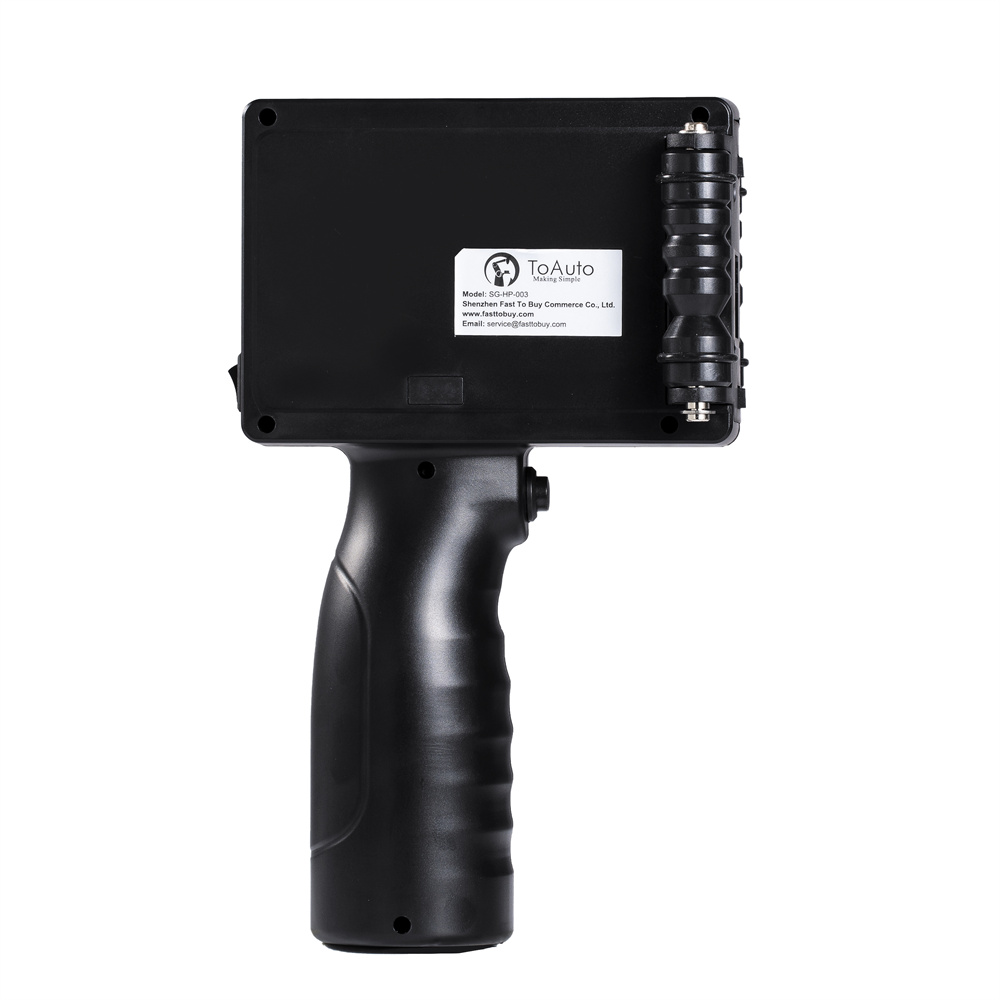

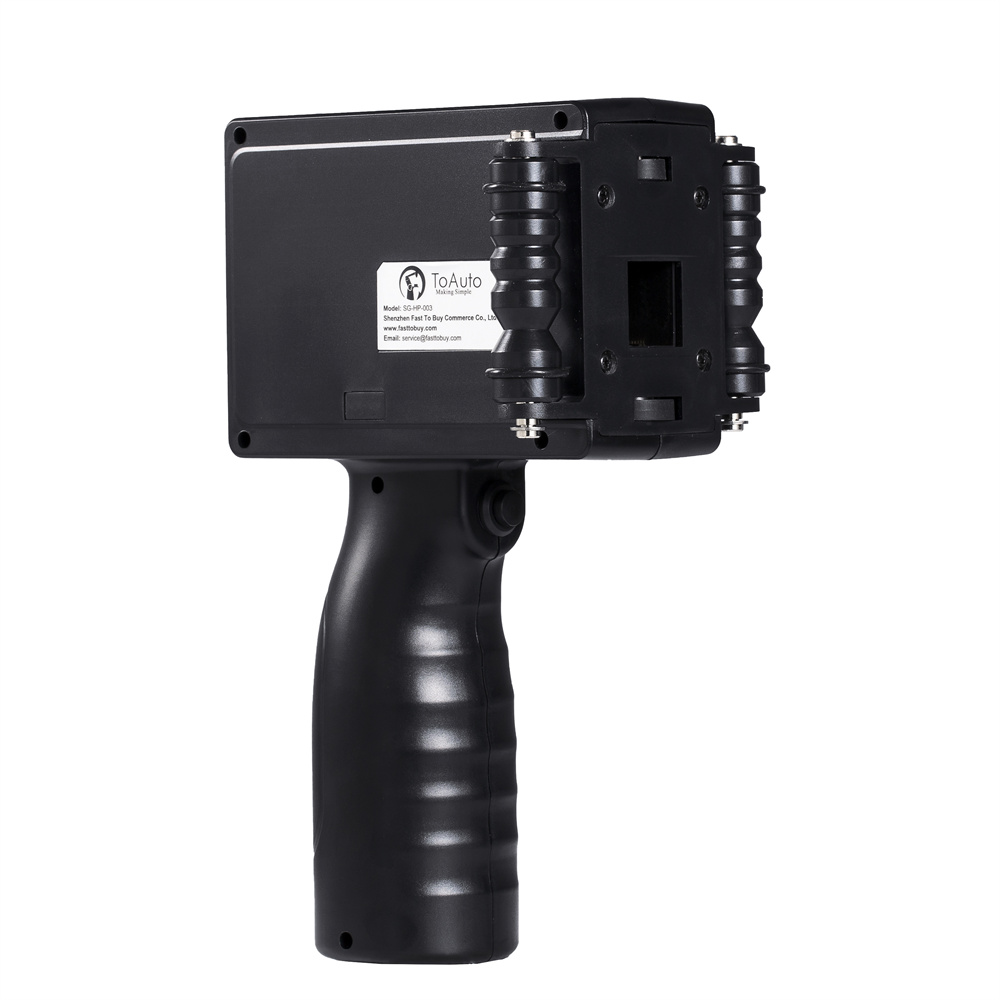

BTMark - BTMARK hot selling card print machine handheld inkjet printer labeling machines allinone printers Handheld printer

Shenzhen Yungchia Coding Equipment Co., Ltd. grasp the new market trends, insight into the actual needs of customers, relying on advanced production technology and accurate market positioning, successfully launched BTMARK hot selling card print machine handheld inkjet printer labeling machines allinone printers. High-end technologies are adopted to manufacture the product.When the product is manufactured and used in the field(s) of Inkjet Printers, its stability and advantages can be fully played out. Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Shenzhen Yungchia Coding Equipment Co., Ltd. firmly believe that we will satisfy the growing needs of every customer.

Specification

Model	HK121	HK122	HK126	HK250	HK500
Printing height	2-12.7mm	2-12.7mm	2-12.7mm	2-25.4mm	2-50mm
Speed	70m/min	70m/min	70m/min	40m/min	20m/min
Screen type	Resistance touch	Resistance touch	Resistance touch	Resistance touch	Resistance touch
Screen size	4.3 inch	4.3 inch	4.3 inch	4.3 inch	4.3 inch
Case material	ABS plastic	Metal	ABS plastic	ABS plastic	ABS plastic
Battery design	Outside	Outside	Inside	Outside	Outside
Battery voltage	8.4V	16.8V	16.8V	16.8V	16.8V
Battery capacity	1800mAh	2200mAh	2200mAh	2200mAh	2200mAh
Machine size/cm	12*24*10	12*24*10	12*21*9	12*24*10	12*25*13
Machine weight	0.58kg	0.92kg	0.53kg	0.92kg	1kg
Printing accuracy	600 DPI
Printing distance	3mm inside is the best
Languages	Chinese, Chinese simple, English, Japanese, Korean, French, Italian, Portuguese, Spanish, Dutch, German, Turkish, Arabic, Vietnamese, Thai language, Mongol, Bahasa Melayu, Bahasa Indonesia etc. More languages are under developing.
Printing functions	1. Can print text, number, Serial number, Date, Graphic, Bar code, GS1 code, QR code, variable datas. 2. Graphic code：QRCODE、PDF417、DATAMATRIX、UPCA、UPCE、EAN13、EAN8、INT25、CODE39、CODE128、EAN128 Etc； 3. 10 kinds of days and 10 kinds of time formats can be used. 4. Support input with form. 5. Support counter function.
Formats	20 text formats inside Support input with outside formats Type: Entity, Dot library, square lattice, delete bit Typeface: over striking, italic, rotation
Data port	USB 2.0 Photoelectric sensor port.
Printing materials	Paper, plastic, wood, stone, glass, china, metal, cloth etc.
Environment	Temperature 0-45 0C (20-300C is the best), Humidity 40-60%Rh
Ink cartridges	Type: Quick draw, oily ink, water based ink. Color: Black, white, red, blue, yellow, green, invisibility.

Product Description

Hand-held Inkjet Printer Features:

1. Strong multi functions integration: Files, date, graphic, graphic code, variable code, counter, form etc. All can be printed. 2. Humanity interface: 4.3 inch Colorful touch screen, Shoot to your industry environment and working way, operate fluently, quick response. 3. Easy to edit: all kinds of parameters adjustment, what you edit is what you get. 4. Full equipped text types: Build in common use text types, hollow, dot matrix, Outer text input etc, suit to the demands of all industries. 5. Support 20 languages and inputs: Switch with only one press, easy to operate.

Hand-held Inkjet Printer Advantage:

1. Touch screen editable. 2. Printing height adjustable 2-12.7mm

(HK121,HK122,HK126:2-12.7mm; HK250:2-25.4mm; HK500:2-50mm) 3. Clear printing and inks no removable 4. High definition print head. 5. Curved surface can also be printed. 6. Simple and beautiful. 7. High efficiency and widely used.

Company Profile

BTMARK devotes to provide professional coding & marking services to global users,and concentrates on the research and production of inkjet marking system with the thinking of high efficiency and intelligence. Focusing on the development and manufacture of identification systems for 16 years, we have obtained many patented technologies and inventions, acquired CE certificates of EU. BTMARK has realized anti-counterfeiting, anti-channeling management and remote operation as well as achieved the production identification, therefore, it reduced the input of production line personnel and met the demand of fully-automatic factory. Our company keeps upgrading products based on the customer’s demand. We will provide customized identification system solutions for the industry 4.0 and future factory, meanwhile help enterprises to achieve upgraded intelligent manufacturing processes.

Company Advantage:

1.Focusing on the development and manufacture of identification systems for 16 years 2.BTMARK machines have passed CE, EU and ISO9001 certification,and then under review BIS certification 3.BTMARK is a supplier specialized in researching, developing and keep update our equipment. 4.We would offer technical consultation service freely and supply breakdown spare part with fair charge during warranty period of product. 5.We have a professional after-sales team. For your feedback, we will deal with it in time. You can ask our company for promotional materials for related events (like product images, brochures and display video) 6.if becoming our distributor, we quite welcome our distributor to visit our factory for machine operation training and technical communication.

Workshop

Sample Room

Exhibition

Packing & Delivery

FAQ

1.What payment terms are offered to the distributor？ So far we require 100% payment against P/O. 2.What is the shipping terms of your company? We can accept EXW, FOB and CIF 3.What is the currency of payment? You can pay by dollar or RMB 4.How long is the warranty period of product? Warranty time for our machine is 12 months, but filter and consumption are not included. 5.How long is the service life of filter? The filter core life is 12 to 24 months. 6. How long is the service life of pump? The service life of pump is 8 years. 7.Does your machine’s consumables have detection and protection function,such as RFID and chip systems? Yes, RFID (chip) are equipped on consumption bottle for protection. 8.After purchasing your machines, are we able to purchase ink from our local ink supplier for use?Or can we only use your ink? Generally speaking ,original imported ink like Videojet、leibinger、Hitachi、markem-image can be used, normal ink could also be fine. Ink with special capability are not guaranteed .
